$2,500.00
Key Specs

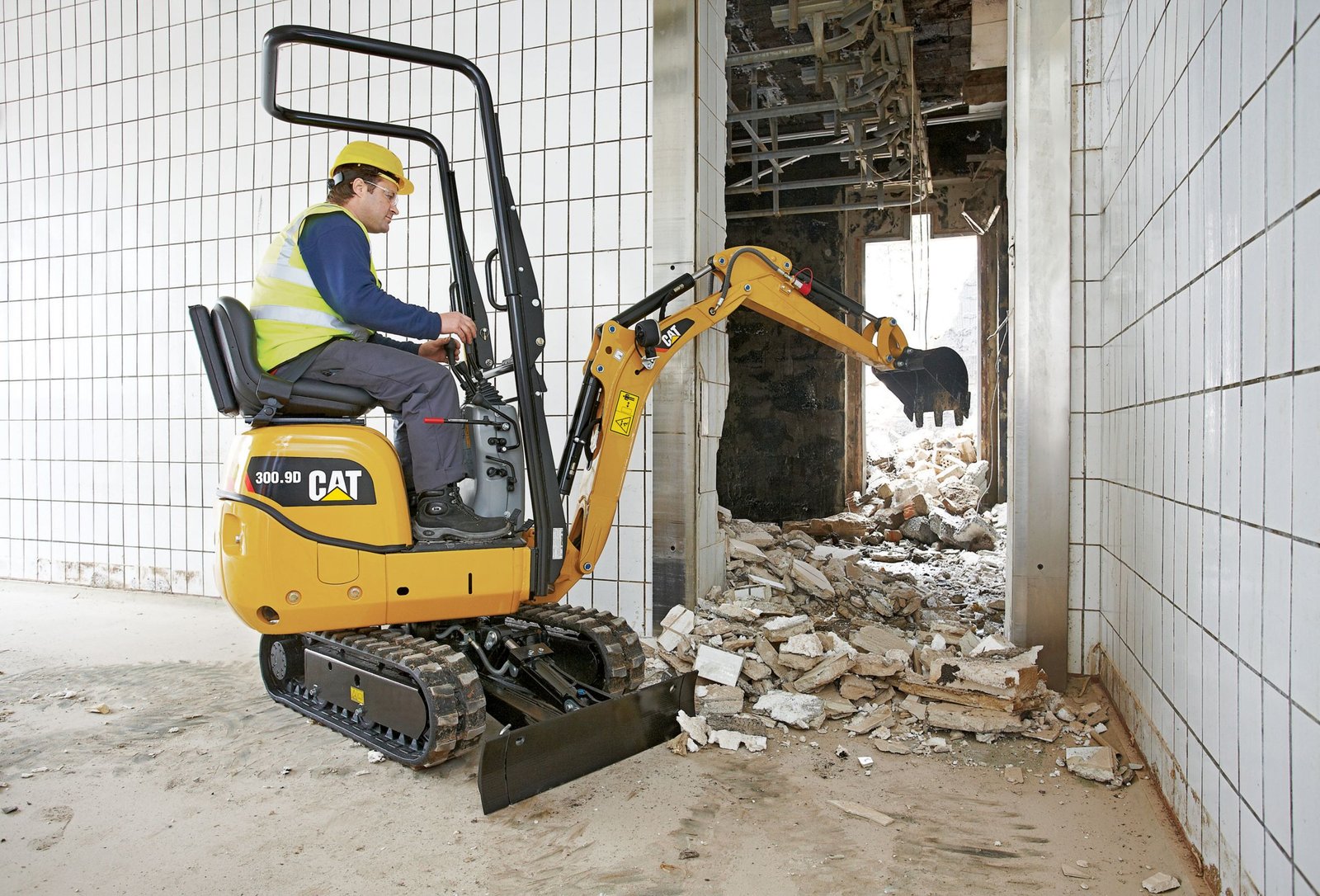

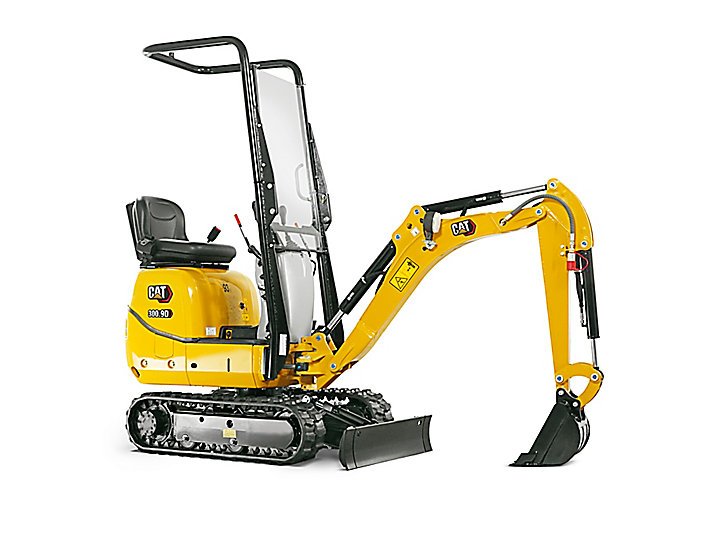

The Cat 300.9D Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
Compact
Work in tight areas
Easy To Use
Simple controls for easy operation
Range of attachments for a variety of applications
With an overall width of only 730 mm (2 ft 5 in) the Cat® 300.9D can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible.
An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator’s seat, enables the machine to pass through narrow openings.
A protective ROPS safety frame structure mounted on the front of the machine allows fitting of a guard for extra operator protection during hammer use. The structure folds down in a few seconds for easy machine transportation and storage.
The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precise operation is possible from easy to use controls allowing all skill levels to be productive with little practice.
Service and maintenance time is reduced to a minimum with a simple to open steel engine cover and all maintenance and greasing points easily accessible.
A range of tools is available to take advantage of the machine’s versatility. All tools are matched to the machine to optimize performance and deliver excellent value through high productivity and long life.
| Net Power | 13 hp |
| Engine Model | Yanmar 31NV70 |
| Rated Speed | 2100 r/min |
| Maximum Engine Output | 18 hp |
| Gross Power – ISO 14396 | 18 hp |
| Diesel Tank Volume | 2.64 gal (US) |
| Displacement | 52 in³ |
| Flywheel Output ISO | 13 hp |
| Battery | 12 V, 20 Amp |
| Type | Water cooled model 3-cylinder diesel engine |
| Make/Type | Yanmar 31NV70 |
| Emissions | Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. |
| Dig Depth | 68 in |
| Undercarriage Width – Extended | 2.83 ft |
| Width | 2.4 ft |
| Height – With ROPS Safety Frame Folded Down | 4.94 ft |
| Maximum Dump Height | 6.68 ft |
| Maximum Dozer Lift Height | 8 in |
| Length – Undercarriage | 4 ft |
| Maximum Vertical Dig Depth | 4.43 ft |
| Minimum Front Linkage Swing Radius | 3.77 ft |
| Boom Swing Angle – Left | 55 ° |
| Undercarriage Width – Retracted | 2.33 ft |
| Boom Swing Angle – Right | 56 ° |
| Maximum Reach | 10.09 ft |
| Maximum Reach – Ground Level | 9.92 ft |
| Transport Length – Arm Lowered | 9 ft |
| Track Width | 7 in |
| Tail Swing Radius | 2.41 ft |
| Maximum Dozer Dig Depth | 7 in |
| Maximum Dig Height | 9.39 ft |
| Height – With ROPS Safety Frame Unfolded | 7.47 ft |
| Pumps | 2 gear pumps |
| Discharge Capacity | 11.4 + 11.4 L/min (3 + 3 gal/min) |
| Operating Pressure for the Work and Travel Hydraulics | 2466 psi |
| Operating Pressure Pivot | 1015 psi |
| Hydraulic Tank Capacity | 3.7 gal (US) |
| Operating Weight – Without Safety Frame | 2061 lb |
| Digging Force – Bucket | 2000 lb |
| Digging Force – Stick | 1011 lb |
| Operating Weight – With Safety Frame | 2170 lb |
| Operating Weight | 2061 lb |
| Operating Weight – Without Safety Frame | 2061 lb |
| Operating Weight – With Safety Frame | 2170 lb |
| Gradeability | 30°/58% |
| Travel Speed | 1.12 mile/h |
| Track Width | 7 in |
| Ground Clearance | 5 in |
| Ground Pressure | 3.5 psi |
| Machine Swing Speed | 8 r/min |
| Number of Rollers – Each Side | 2 |
| Stick Length – Standard | 34.8 in |
| Machine Overhang | 12.5 in |
| Height | 8 in |
| Dig Depth | 7 in |
| Width | 28 in |
| Lift Height | 8 in |
| Sound Power Level (LWA) (to 2000/14/EG) | 93 dB(A) |
